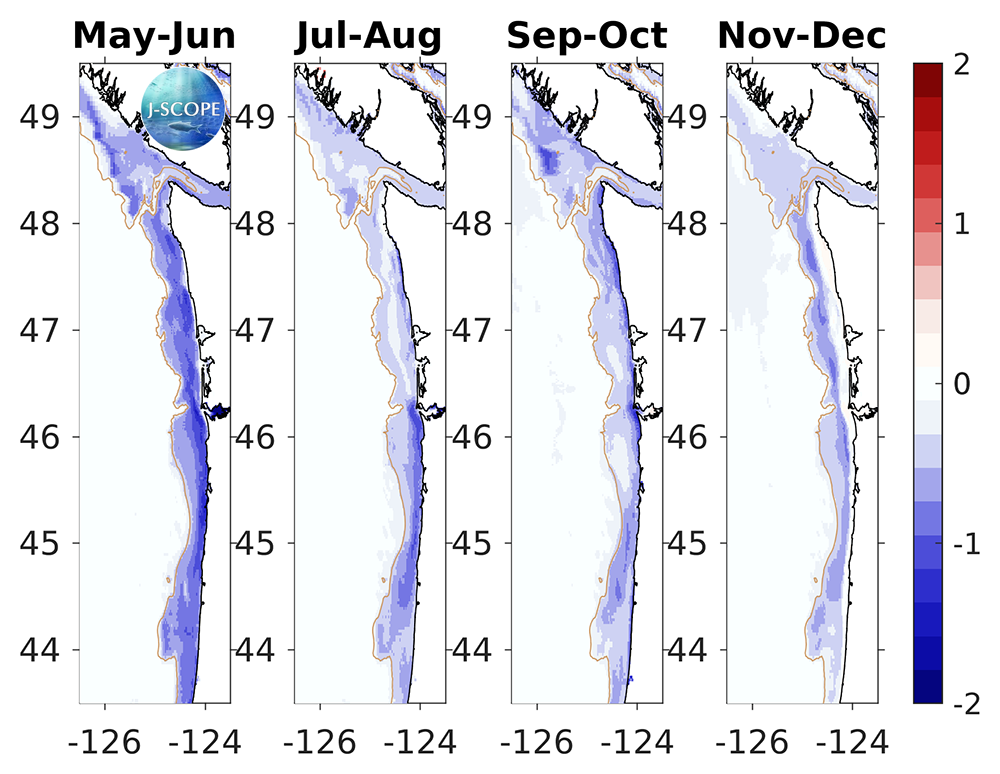

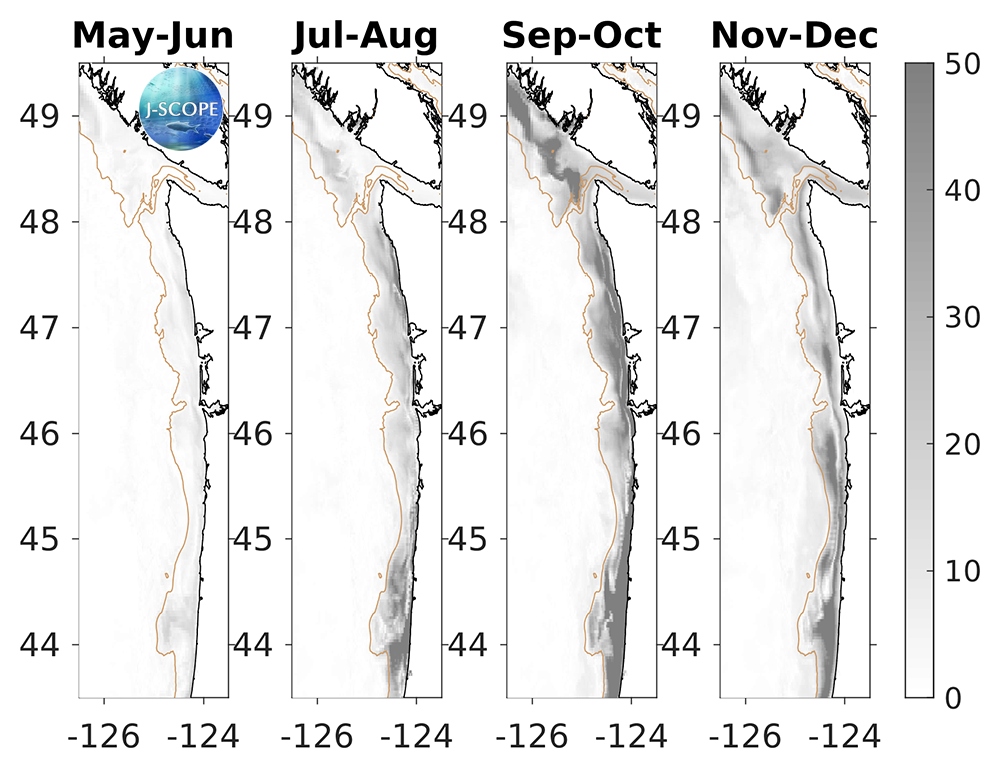

J-SCOPE forecast results for the simulation beginning in April of 2022 are shown through a series of figures below. In the first figure, each panel represents ensemble averaged anomalies of two month averages for the region. In the second figure, the panels depict the relative uncertainty from the ensemble for the same time periods.

From the maps, oxygen on the shelf is forecast to be lower than the climatology during the upwelling season of 2022 in Washington and Oregon, though this is more pronounced earlier in the upwelling season (May - June) with an near climatological conditions developing mid-upwelling season (July - August) and returning to lower than the climatology later in the season. The relative uncertainty is low (<20%) for the first half of the upwelling season (May - June) but increases on the shelf (up to ~50%) during the second half of the upwelling season (July - August) and remains high in the fall.

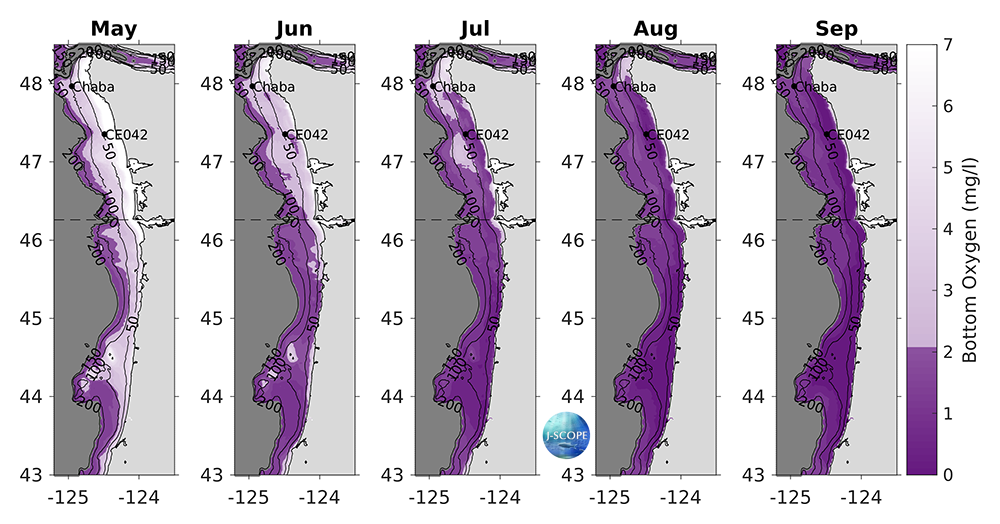

Forecast bottom oxygen (mg/l), averaged over three ensemble members for each month, indicates declines in oxygen concentrations over the course of the forecast for both Washington and Oregon, with hypoxia (O2 < 2 mg/l) along the shelf break over much of the Oregon coast in May and expanding to cover the Oregon shelf by June. The Washington shelf experiences patches in June and is covered by July, with the exception of small regions north of Ćháʔba· and south of Cape Elizabeth (CE042) remaining normoxic. These hypoxic conditions persist on the continental shelf through September when the northernmost region of the Washington shelf becomes hypoxic too.

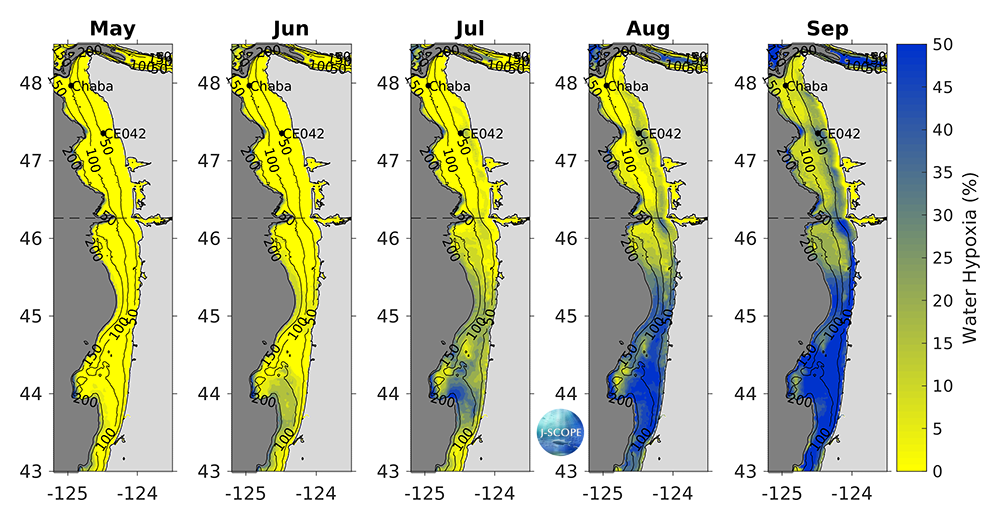

Over the course of the upwelling season, hypoxia extends upward into the water column as well. The percentage of the water column that is forecast to experience hypoxia (O2 < 2 mg/l) is a metric for this phenomenon. Early in the upwelling season (May - June), small volumes of hypoxic water are forecast for the Oregon shelf, mainly near Heceta Bank where up to 20% of the water column may be hypoxic. In July, hypoxia is forecast to intensify near Heceta Bank (<40%) and begin to occur at low volumes (<20%), in a thin layer along the seabed, throughout most of the Oregon shelf and nearshore areas in Washington. By late summer (August and September), the percentage of the water column that is hypoxic increases coast-wide, with particularly high hypoxic volumes (~50%) forecast on the Oregon shelf and moderate hypoxic volumes (20-40%) forecast for most of the Washington shelf.

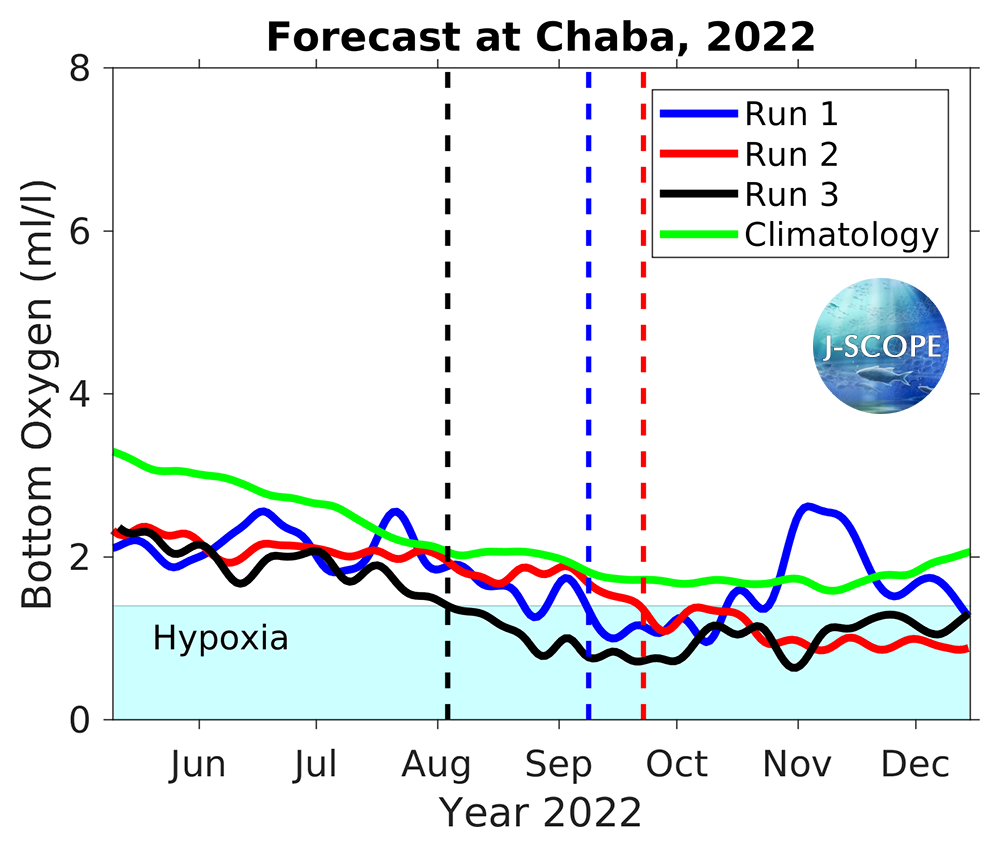

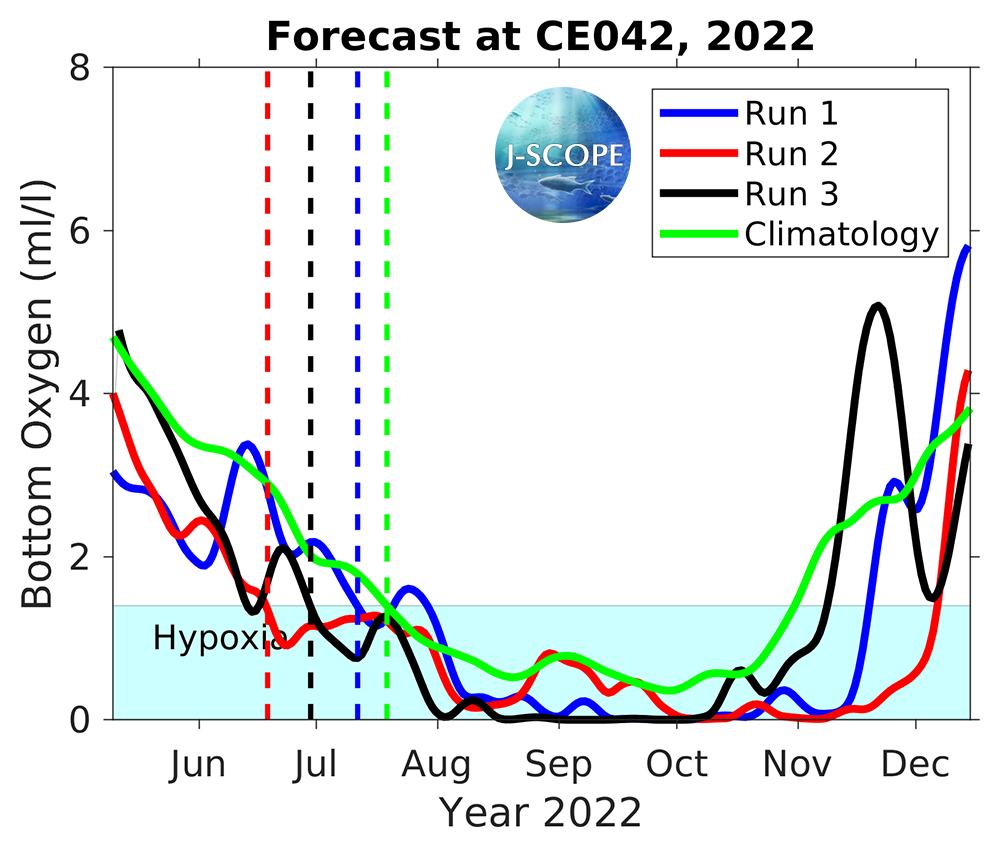

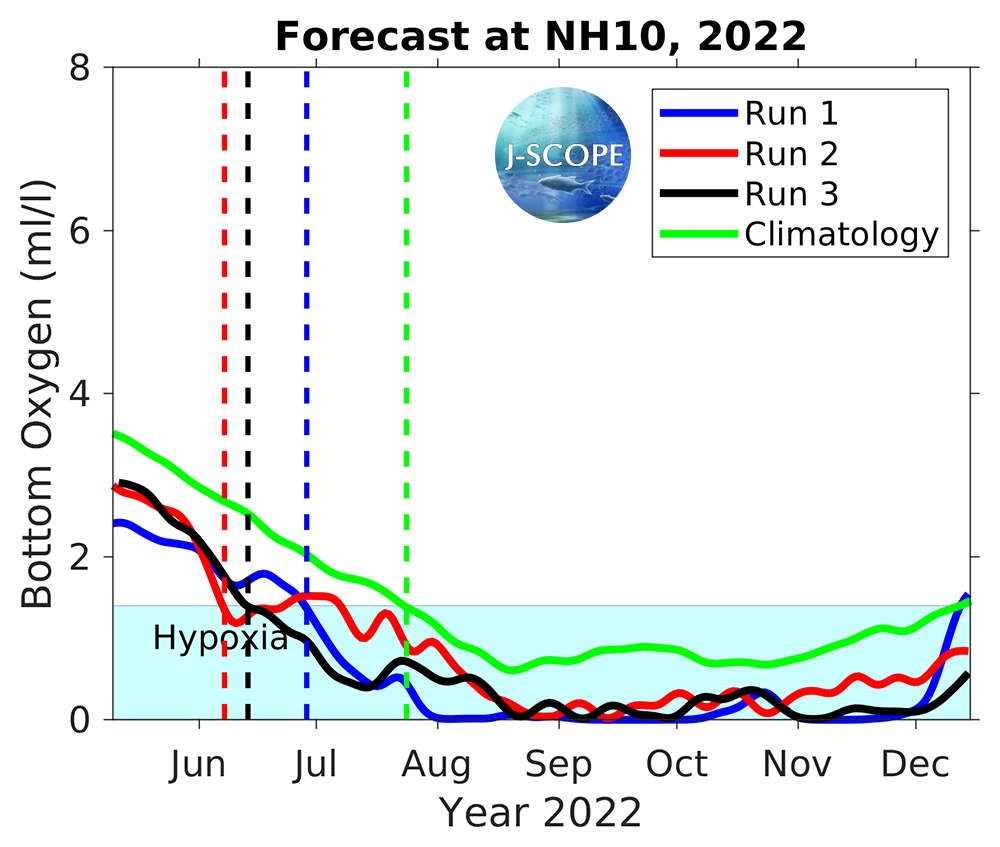

Time series of bottom oxygen from the Washington coast near one of the Olympic Coast National Marine Sanctuary (OCNMS) moorings at Cape Elizabeth (site CE042), from NH-10 mooring off of Newport, Oregon, and from the Ćháʔba· mooring off of La Push, Washington, are shown for each member of the ensemble. The model forecasts that hypoxia will most likely develop at all three moorings. For the NH-10 and CE042 moorings, all three ensemble members forecast hypoxia onset earlier than climatology, likely beginning in June. Another time series from the outer Washington shelf, Ćháʔba·, forecasts hypoxia onset later in the upwelling season (August - September) but this is highly uncertain for this location given the wide spread in the ensemble members.

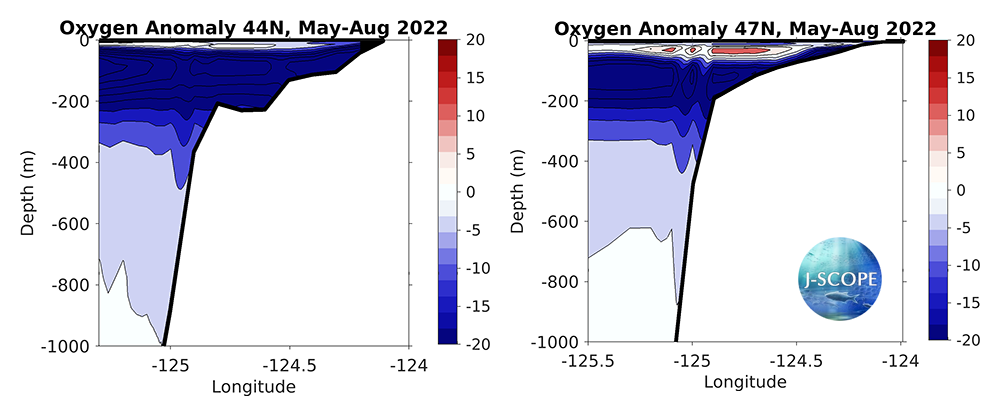

Finally, climatological cross-sections from the Newport Line in Oregon (44°N) and the Grays Harbor Line in Washington (47°N) are compared to the forecast average of the ensemble members during the summer upwelling season (May - August). In both Oregon and Washington, the forecast projects that the oxygen concentration for the upwelling season of 2022 will be lower than the climatology on both the shelf extending down to regions on the slope (~400 m) with the largest anomalies occurring between the surface and ~300 m depth in both Oregon and Washington. Notably, a region on the Washington shelf is expected to develop higher than average oxygen concentrations subsurface (between 50-100 meters depth), likely due to the colder temperatures forecasted there.

The emergence of anoxia in the model in late summer is caused by a bias associated with the lack of relaxations in the winds (found to be important in a paper by Adams et al, 2013) in the Climate Forecast System input files as well as a bias in the shortwave radiation (see 2013, Year in Review). The model does have skill in predicting the emergence and severity of hypoxia, while it is biased low for these reasons. Given the difficulty in predicting the fall transition in prior forecasts (see 2013, Year in Review), the forecast for low oxygen levels forecast well into August is highly uncertain.
