Forecast Origin Dates

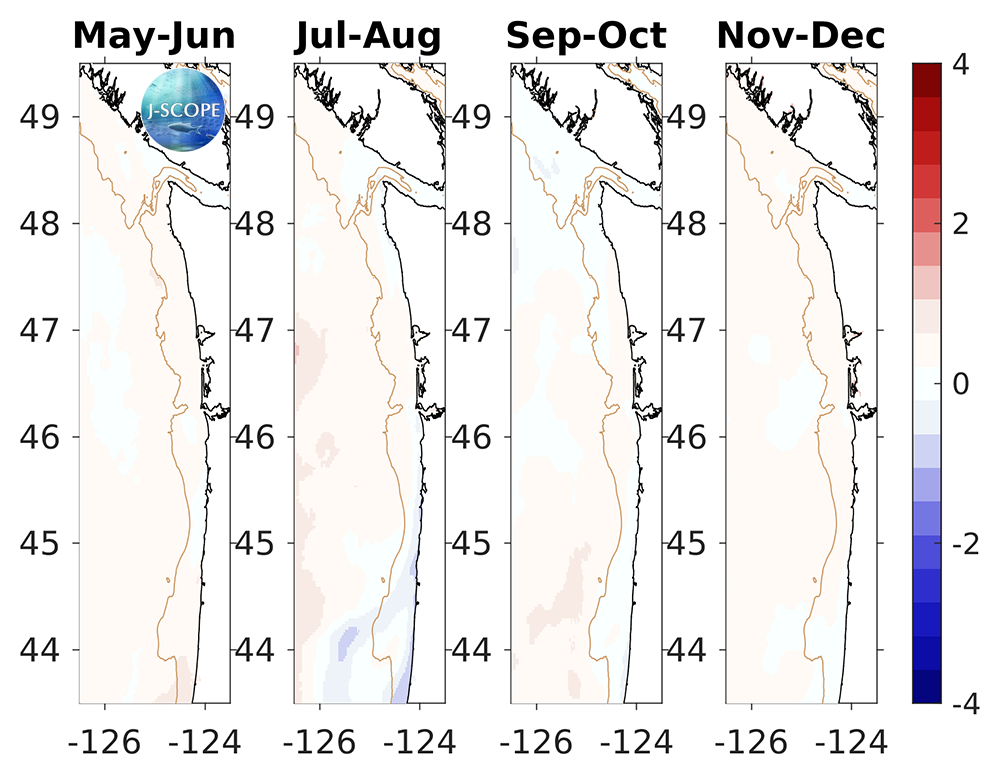

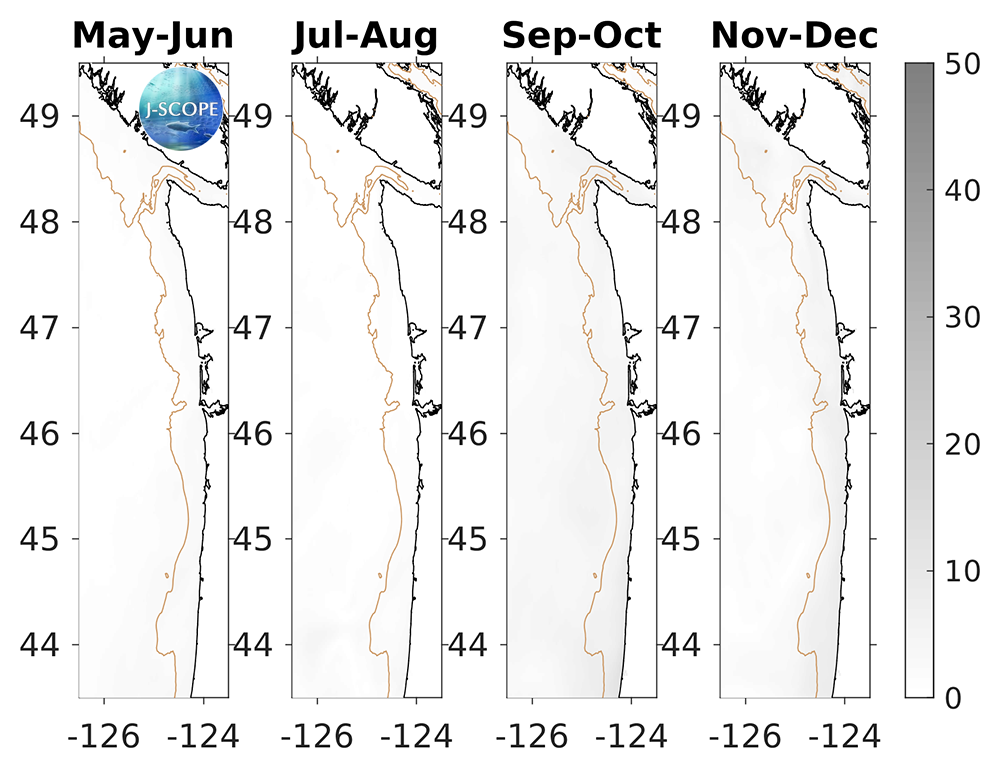

J-SCOPE forecast results for the simulation beginning in April of 2020 are shown through a series of figures below. In the first figure, each panel represents two-month ensemble averaged anomalies for the region. The panels directly under the anomaly plots depict the relative uncertainty from the ensemble for the same time period.
For waters off the Washington and Oregon coast, the forecast projects that SST will be near climatology throughout the upwelling season (May - August) and the fall (September - December). The relative uncertainty is very low during the upwelling season (May - August) and, although it increases slightly in the fall (September - December), it is still low (<10%) for the entire forecast.

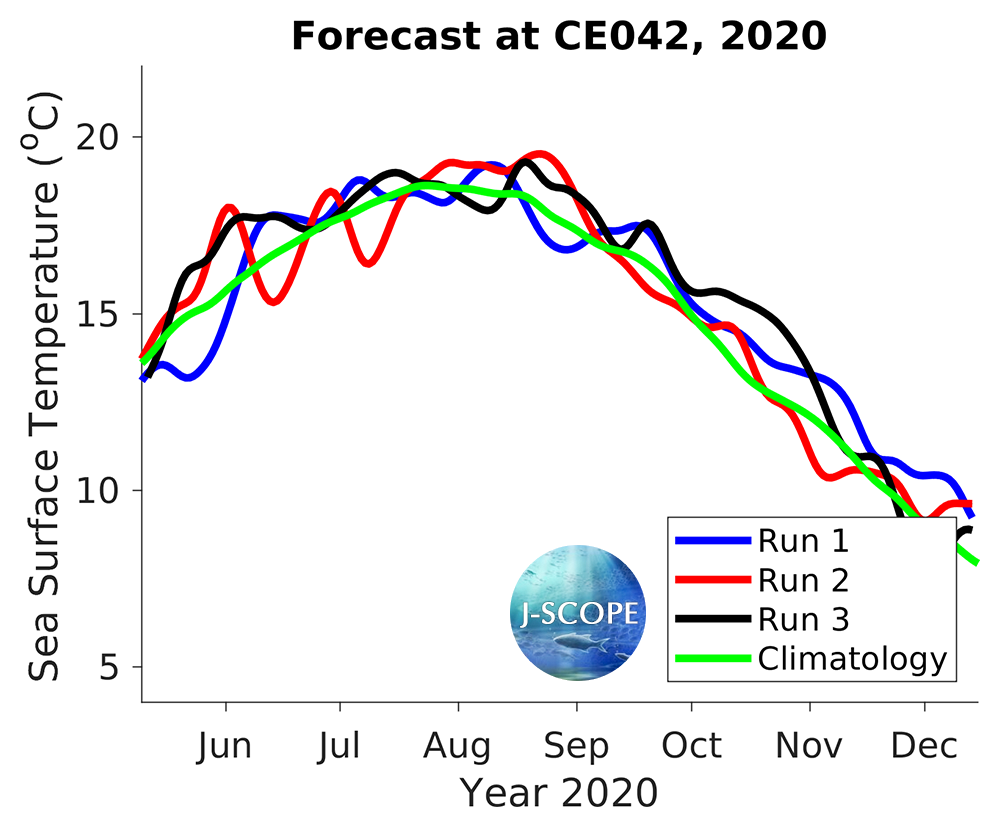

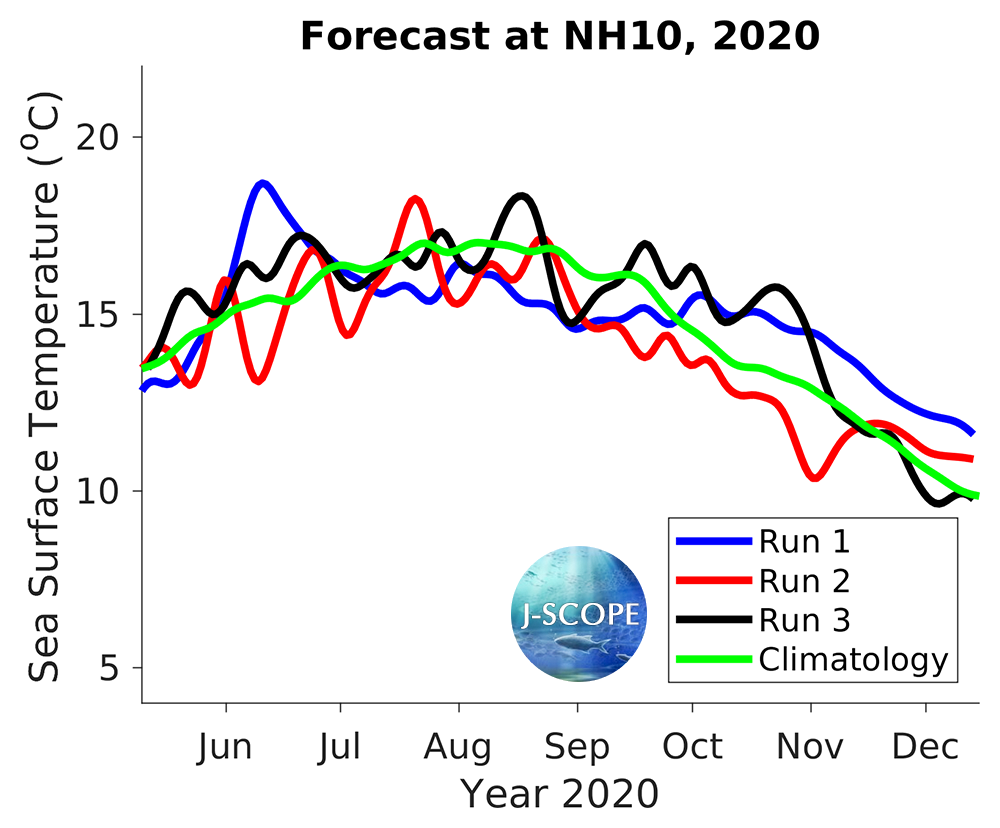

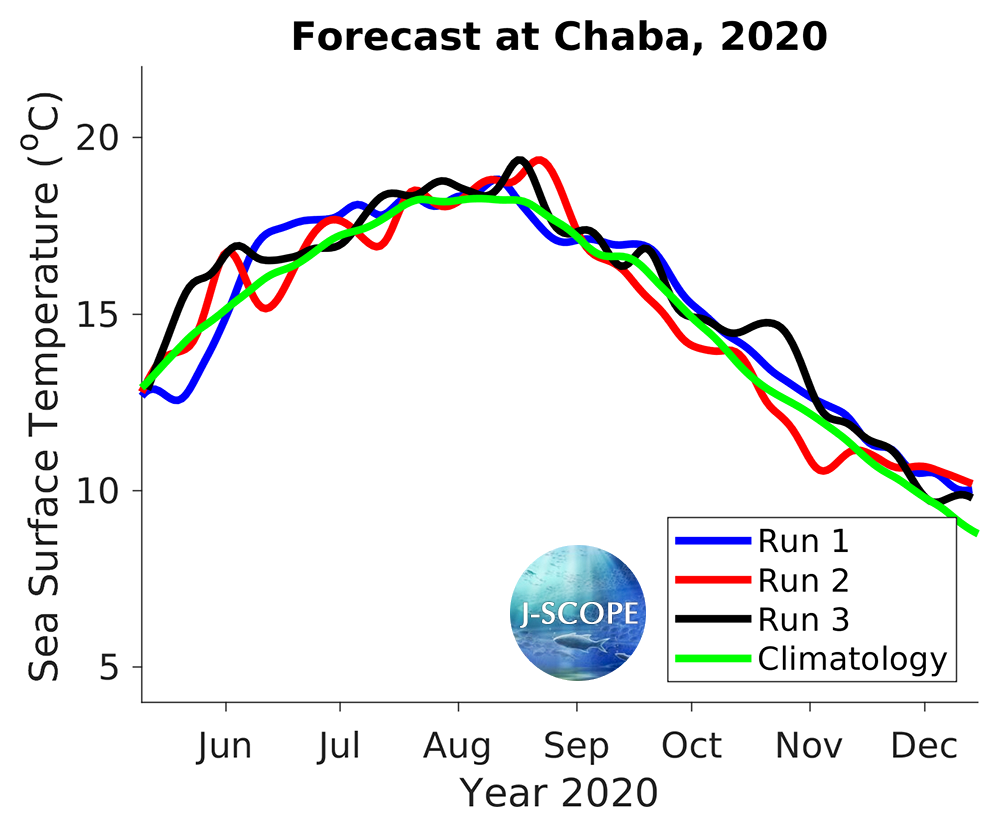

The SST was forecast using all three model runs of the ensemble for three point locations where buoys exist, Ćháʔba· off La Push, Washington, NH-10 off Newport, Oregon, and CE042 in the Olympic Coast National Marine Sanctuary (shown below). All three indicate that SSTs will be near climatology during the summer upwelling season and slightly warmer than climatology into the fall months.

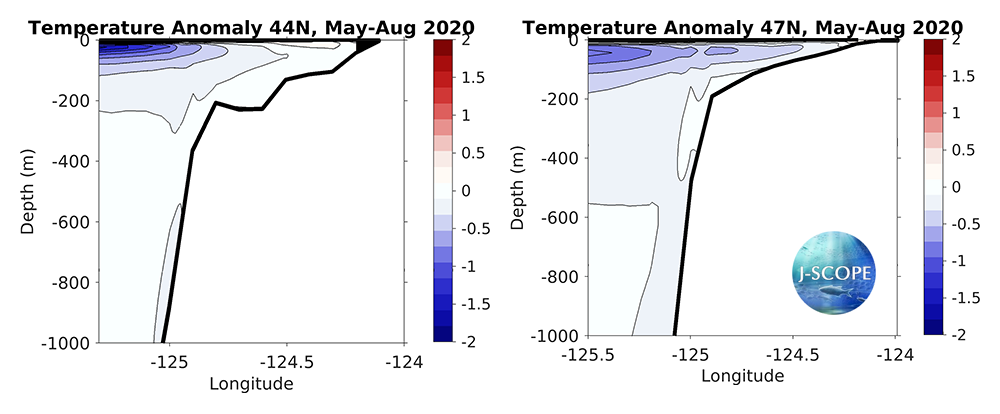

Finally, climatological cross-sections from the Newport Line in Oregon (44°N), as well as the Grays Harbor Line in Washington (47°N), are compared to the forecast average of the ensemble members. The forecast projects shallow subsurface waters (~50 - 200 m) offshore to have temperatures for the 2020 upwelling season that are slightly cooler than climatology in both Washington and Oregon, while deeper waters and subsurface waters over the shallowest portion of the continental shelf are slightly warmer than climatology. The subsurface cool anomaly is projected to be slightly lower relative to climatology and shallower along the Newport Line (~50 - 100 m) while it extends deeper along the Grays Harbor Line (~50 - 200 m).
One bias is known to exist in the model that impacts these forecast SSTs. The modeled shortwave radiation is known to be too high (see 2013, Year in Review), which can contribute to forecast temperatures being too warm in summer.
We note that the NANOOS Climatology App shows that the NDBC buoys along the Washington and Oregon shelf are recording sea surface temperatures near or slightly lower than the long-term averages during spring 2020 on the outer shelf, and, closer to the coast, the CDIP and NDBC Cape Elizabeth buoys are recording SST warmer than the long term averages.
